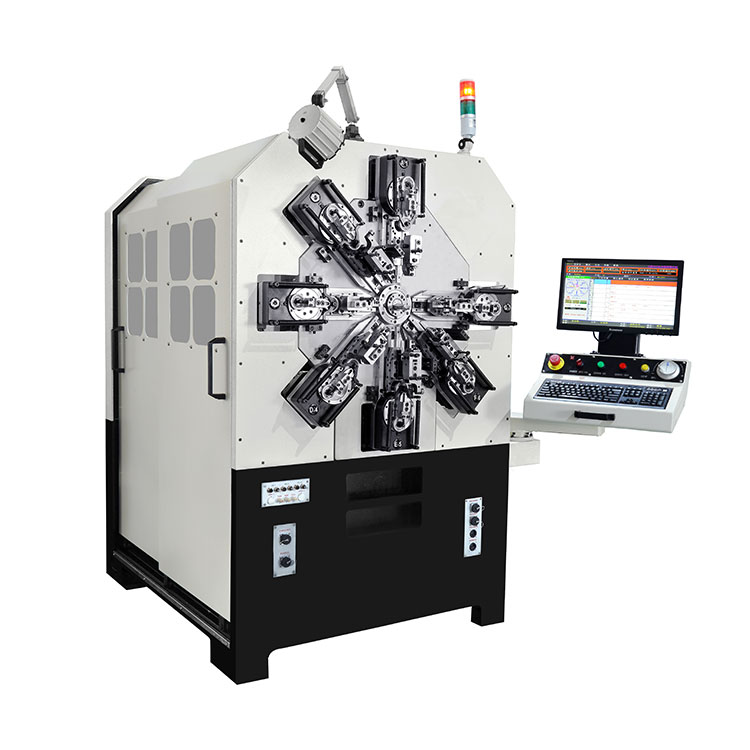

CMM-12-236R Spring Machine

  • CMM-12-236R Spring Machine
CMM-12-236R Spring Machine
  • Model: CMM-12-236R
  • Introduction: Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
  • Spec: Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
Consult now

Product Advantage

1、 Windows based operating system.

2、 Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.

3、 Intuitive graphics user interface is based on Windows and its crash free

4、Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.

5、Commonly use in the industries of: automobile, wire forms, entertainment and fitness.

Technical Parameters

MODEL CMM-12-236R
Wire Dia. 0.4-2.6mm
Max. Wire Feed 1000mm
Min. Wire Feed 0.01mm
Max. Wire Feed Speed 130m/min
Max. Wire Feed Length Unlimited
Number Of Axes 12 Axis(Spinner & X-Y included)
Power 12.75KW
Voltage 220V(Customizable)
Hardware Industrial
Program Storage 2500
Voltage Regulator Power 15KW
Air Compresser System Air pressure 5-6KG/cm
Pin 3pcs
Dimensions Depth 2020mm/80"
Width 1440mm/57"
Height 1800mm/71"
Machine Weight 1700KG/3748 lbs
