CMM-12-420R Spring Machine

  • CMM-12-420R Spring Machine

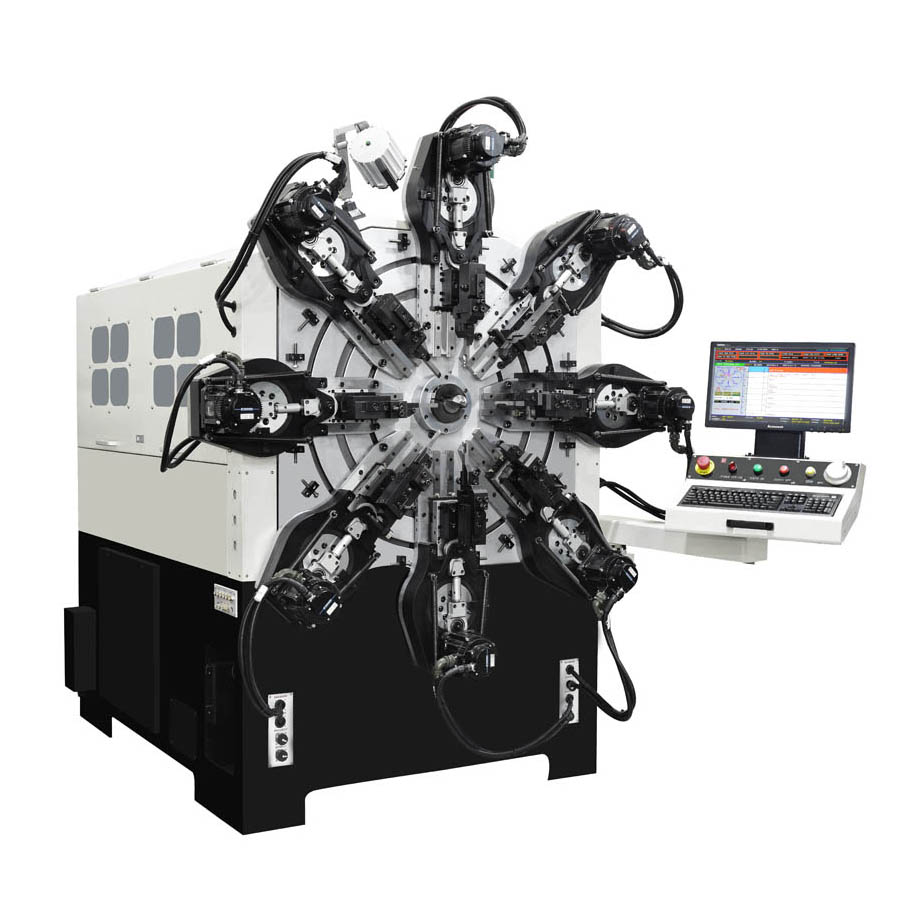

CMM-12-420R Spring Machine
  • Introduction: Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
  • Spec: Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.
Consult now

Product Advantage

1、Windows based operating system.

2、Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.

3、Intuitive graphics user interface is based on Windows and its crash free

4、Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.

5、Commonly use in the industries of: automobile, wire forms, entertainment and fitness.

Technical Parameters


MODEL CMM-12-420R
Wire Dia. 1.2-4.0mm
Max. Wire Feed 1000.00mm
Min. Wire Feed 0.01mm
Max. Wire Feed Speed 100m/min
Max. Wire Feed Length Unlimited
Number Of Axes 12
Power 24900W
Voltage 220V(Customizable)
Hardware Industrial
Program Storage 2500
Voltage Regulator Power 20KW
Air Compresser System Air pressure 5-6KG/cm
Pin 3pcs
Dimensions Depth 2150mm/85"
Width 1900mm/75"
Height 2070mm/82"
Machine Weight 3000KG/6614 lbs

Sample Display


Manufacturability

Fair And Client

Certification

Success Cases

Related Products
